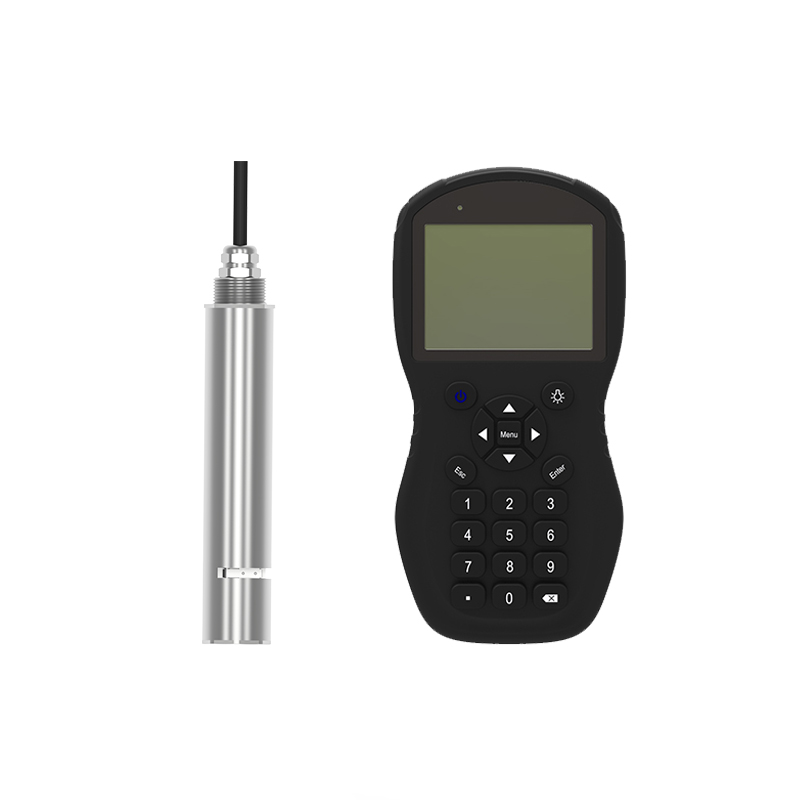

AM-P-COD Portable COD Meter
1) COD :0~500mg/l (using KHP calibration)
2) BOD :0~375mg/l (Optional, trend measurement)
3) TOC :0~200mg/l (Optional, trend measurement)
4) Turbidity :10~800NTU
5)) Suspended solid, Sludge Concentration,TSS,MLSS
6) Blue-green Algae sensor’s protection:IP68
7) Rechargeable lithium battery:4*3.7V R.
8) With 8G data storage
9) With USB interface to download data.
Product Details
AM-P-COD Portable COD(spectrometer organic) analyzer developed by Aumeascon and consists of portable host and Spectrometer Organic sensor.Based on the UV absorption reaction by organic matter, the Spectrometer Organic On-Line Analyzer uses the 254 nm spectral absorption coefficient SAC254 to measure the content of soluble organic compound in the water, and it can be converted to COD or BOD values under certain conditions. This method allows continuous monitoring without any reagents.
Technical Features
1) Measure COD,Turbidity together and BOD,TOC for optional
2) UV principle and without any reagent.
3) The sensor is with IP68 protection and host is IP67.
4) 3.5-inch color screen display, interface menu design is beautiful, easy to operate;
5) Ergonomic curve design, suitable for hand grip, with rubber non-slip hand strap;
6) With data storage function, and data export through USB interface;
7) Built-in rechargeable battery and charging directly via USB ;
8) The sensor can be parameterized and calibrated;
9) The COD sensor uses LED light source, low power consumption.
Technical Parameters
Model | AM-P-COD Portable COD (BOD,TOC) Analyzer |
Measuring Range | COD :0~500mg/l (using KHP calibration) BOD :0~375mg/l (Optional, trend measurement) TOC :0~200mg/l (Optional, trend measurement) Turbidity :10~800NTU |
Accuracy | COD:±5%, Turbidity:±10% |
Repeatability | 5% |
Resolution | COD:0.01mg/L, Turbidity:0.01NTU |
Pressure Range | ≤0.1Mpa |
Display | 3.5-inch color display screen with adjustable backlight |
Power supply | Built-in battery power, 4 3.7V rechargeable lithium battery |
Data storage | More than 100,000 data |
Material | Host:ABS+PC Sensor Body:SUS316L(fresh water)， Titanium alloy(Ocean marine)； Sensor Cable:PUR |
Protection | Mainframe: IP67,sensor: IP68 |
Operating temperature | 0~50℃(Non-freezing) |
Storage temperature | -15~60℃ |
Dimension | Host:203*100*43mm, Sensor:Dia 34mm*Length 209mm |
Cable length | Standard: 3 m(The cable can be extendable) |
Mainly Applications
Widely used in on-site portable COD,BOD or TOC monitoring of water suspended solids in sewage treatment, surface water,river,lakes, universities, research institutes and other aqueous systems.
