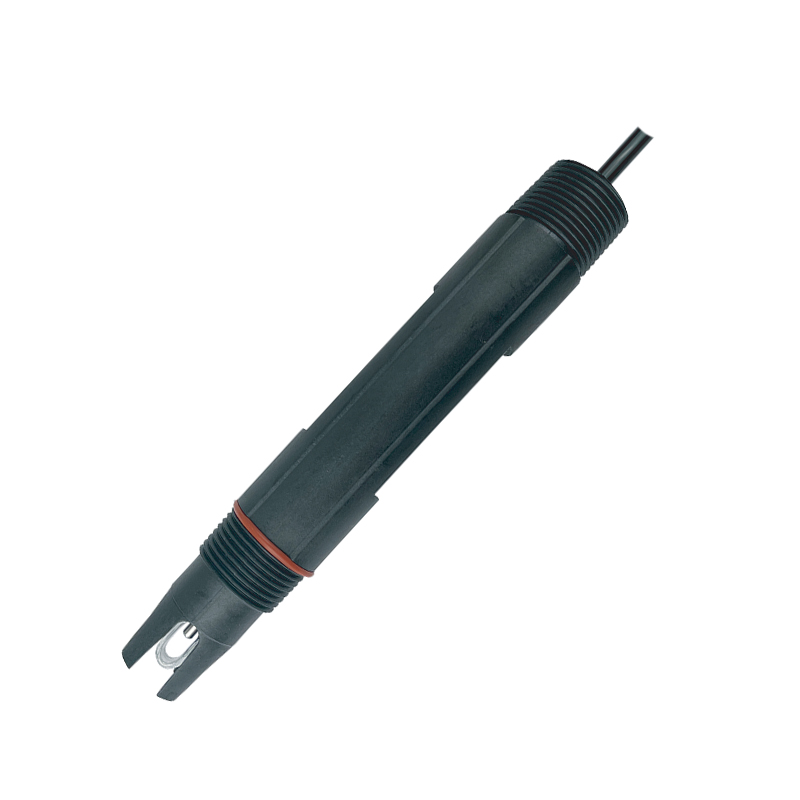

AM-IOT-EC Digital Conductivity Sensor
1) Conductivity range: 0~200ms/cm , Temperature range: 0~65℃
2) Standard RS485 Modbus.
3) Maximum transmission distance 500 meters.
4) Independent chip, anti-interference, strong stability.
5) PPS housing for widely water application
Product Details
AM-IOT-EC digital conductivity sensor independently developed and produced by Aumeascon. The housing of conductivity sensor is PPS for different water application, easy to install, and it has high measurement accuracy, sensitive response, and can work stably for a long time. Built-in temperature probe, instant temperature compensation. Strong anti-interference ability, the longest output cable can reach 500 meters. It can be set and calibrated remotely, and the operation is simple. It can be widely used in monitoring the conductivity of thermal power, chemical fertilizer, metallurgy, environmental protection, pharmaceutical, biochemical, food, fermentation, brewing and tap water and other fields.
Technical Parameters
Model | AM-IOT-EC |
Measuring range | 0~200ms/cm/cm ; 0~65℃ |
Accuracy | ±1.5%FS ; ±0.5℃ |
Resolution | 0.001us/cm ~ 0.1ms/cm ; 0.1℃ |
Power Supply | 9~27V DC , 0.5W |
Temperature Comp | 10K |
Communication | RS485 Modbus/cm RTU |
Hous/cming Material | PPS |
Connection | Upper and lower NPT3/4NPT |
Protection | IP68 |
K Constant value with correspond Conductivity value
Constant value | Low range | Mid range | High range |
K = 0.01 | 0.020~2.000us/cm | 0.20~20.00us/cm | 4.0~200.0us/cm |
K = 0.10 | 0.20~20.00us/cm | 2.0~200.0us/cm | 40~2000us/cm |
K = 1.00 | 2.0~200.0us/cm | 20~2000us/cm | 0.40~20.00ms/cm |
K = 10.0 | 20~2000us/cm | 0.20~20.00ms/cm | 4.0~200.0ms/cm |
Wire Connection
Function | Wire connection | |
Communication | Yellow | RS-485 T/R + (A) |
White | RS-485 T/R – (B) | |
Power supply | Red | V DC + |
Black | V DC – | |
