Online Ion Analyzer
1) Ion:Fluoride,chloride,calcium,nitrate,ammonium,potassium,magnesium ion etc
2) Chemical formula::F-,Cl-,Ca2+,NO3-,NH4+,K+,NH3,Mg 2+,CO2,NO2-, etc
3) Ion/mV/temperature reading at site
4) RS485 Modbus, 4-20mA, High/Low control relays
5) Wide power range: 100 ~ 240V AC 50/60Hz or 24VDC
6) Ion Resolution:0.01 ppm or ppb
7) Measurement unit mg/L, ppm, mV, ppb
Product Details

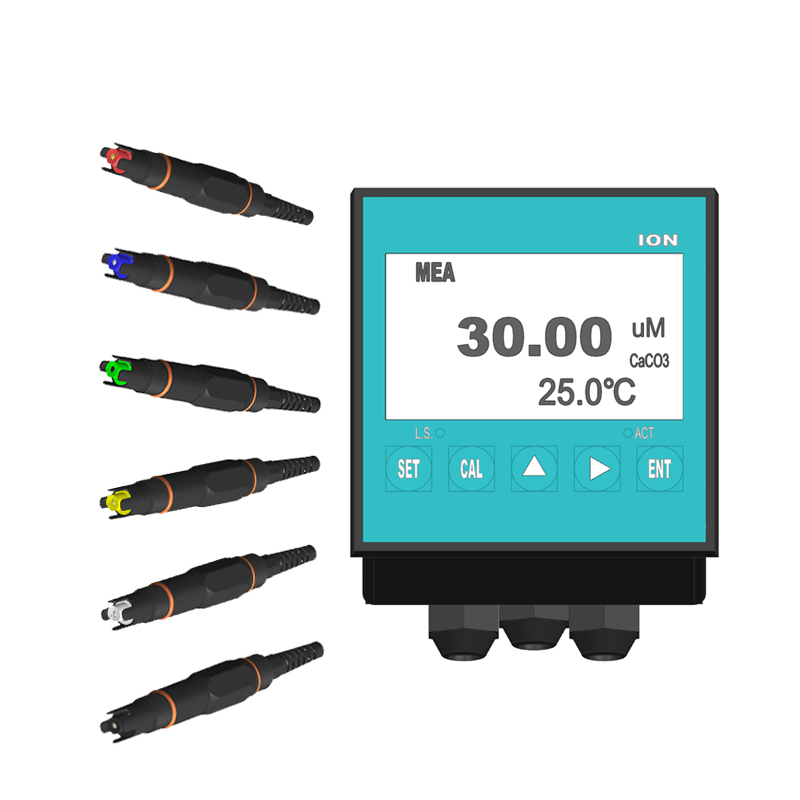

The Aumeascon AM-ION Online Ion Meter offers a new way of online ion monitoring in different water application. it adopts advanced ion-selective electrode (ISE) technology for online continuous monitoring of ion concentration in water effluent. The working life of Aumeascon’s ion electrode (ISE) is over one year, because the ion sensor membrane is special designed by Aumeascon and it can be replaced in period according to water quality at site.so it can save much maintenance cost. The AM-ION Online ion controller meter uses is latest micro-computer.it has two ways of relay control, two ways of 4-20mA ,RS485 Modbus.and has a user-friendly interface, easy use, long working life, local data recording function.
Technical Specification
1) Ion/mV/temperature reading offset adjustment: compare on-site online verification values.
2)Standard online ion meter, suitable for use in various complex field environments.
3)Strong anti-interference design: excellent performance in strong interference field operation.
4)Two-way relay: high and low4point control and hysteresis width can be set independently.
5)Two-way current output: 0/4-20mA, output range can be set by yourself.
6)IP65 protection level: all-weather waterproof and gas-proof.
7)Range: provide multiple ranges and multiple resolutions.
8)LCD screen; optical sensor controls LED backlight.
9)Wide power range: 100 ~ 240V AC 50/60Hz or 24VDC.
Technical Parameters of Ion Meter
Parameters | F-,Cl-,Ca2+,NO3-,NH4+,K+,NH3,Mg 2+,CO2 |
Ion Range | 0.00 ~ 20000mg/L (the screen displays various ion symbols) |
Ion Resolution | 0.01 ppm or ppb |
Ion Buffer | 1ppm/2ppm/5ppm/10ppm…..10000ppm |
Ion Calibration | Two-point or one-point calibration, offset calibration |
Temperature range | -30.0 ~ +130 ℃ |
Temperature Resolution/Accuracy | 0.1 ℃ / ± 0.2 ℃ |
Temperature input | Pt1000 or 30K |
Temperature compensation | ATC automatic / MTC manual |
Control type | On-off control (LIT) |
Measurement unit | mg/L, ppm, mV, ppb |
Output | 2 ways of 4-20mA / 500Ω |
Communication | Standard RS485 Modbus RTU |
Relay | 2/3 SPST / 240V 0.5A |
High and low point hysteresis width | With hysteresis setting |
Power | 100-240 VAC 50/60Hz or 24VDC |
Display | Optical sensor controls LED backlight |
Protection | NEMA4X, IP 65 |
Dimension | 96 * 96 * 148mm (W*H*D) |
Hole size | 92 * 92mm |
Technical Parameters of ISE Ion Sensor
Ion | Formula | Membrane | Range @ 25℃(mg/L) | pH Range | Temp. Range | Working Pressure | Reference Ion |
Potassium ion | K+ | PVC | 0.04~ 39000 | 2-12 | 0~40 | 0-1Bar | Cs+,NH4+ |
Ammonium ion | NH4+ | PVC | 0.02~ 18000 | 4-10 | 0~40 | 0-1Bar | K+ |
Calcium ion (Water Hardness) | Ca2+ | PVC | 0.02~ 40000 | 4-10 | 0~40 | 0-1Bar | Pb2+,Hg2+,Fe2+, Cu2+,Ni2+ |
Nitrite | NO2– | PVC | 0.05~460 | 4-9 | 0~40 | 0-1Bar | NO3-, Cl- (need compensation) |
Nitrate | NO3– | PVC | 0.4 ~63000 | 2-12 | 0~40 | 0-1Bar | CIO4-,I-,CIO3-,F- |
Fluoride ion | F– | Solid | 0.02~saturation | 5-8 | 0~80 | 0-3Bar | OH- |
Chloride | Cl– | Solid | 1.8 ~35500 | 2-12 | 0~80 | 0-3Bar | CN-,Br,I-,S2- |
Ammonia | NH3 | PTFE | 0.02~ 17000 | ＞11 | 0~50 | 0-1Bar | Few, volatile amines |
Carbon dioxide (carbonate) | CO2 | PTFE | 4.4 ~ 440 | 4.8-5.2 | 0~50 | 0-1Bar | Volatile weak acid |
Bromide ion | Br− | Solid | 0.4~79900 | 2-14 | 0~80 | 0-3Bar | S2-,I-, CN- |
Iodide ion | I2 | Solid | 0.006~126900 | 0-14 | 0~80 | 0-3Bar | S2-,Br-,CN-,Cl-,S2O3-,NH3 |
Copper ions | Cu 2+ | Solid | 0.0064~ 6350 | 2-6 | 0-80 | 0-3Bar | Hg2+,Ag+,Fe2+,Br-,Cl- |
Lead ions | Pb2+ | Solid | 0.2~20700 | 3-8 | 0-80 | 0-3Bar | Ag+, Hg2+, Cu2+ |
Cadmium ions | Cd | Solid | 0.01~11200 | 2-12 | 0-80 | 0-3Bar | Ag+,Hg2+,Cu2+,Pb2+,Fe2+ |
Sulfur ions | S²⁻ | Solid | 0.003~32100 | ＞11 | 0-80 | 0-3Bar | Hg2+,Cl- |
Silver ions | Ag + | Solid | 0.01~107900 | 2-8 | 0-80 | 0-3Bar | Hg+,Hg2+,Cl- |
Thiocyanate | HSCN | Solid | 0.2~58100 | 2-10 | 0-80 | 0-3Bar | S2-,Br-,CN-,Cl-,S2O3-,NH3 |
Sodium ion | Na+ | Glass | 0.0~23000 ppm | 5-12 | 0-80 | 0-3Bar | K+,H+ |
Dimension of Ion Sensor

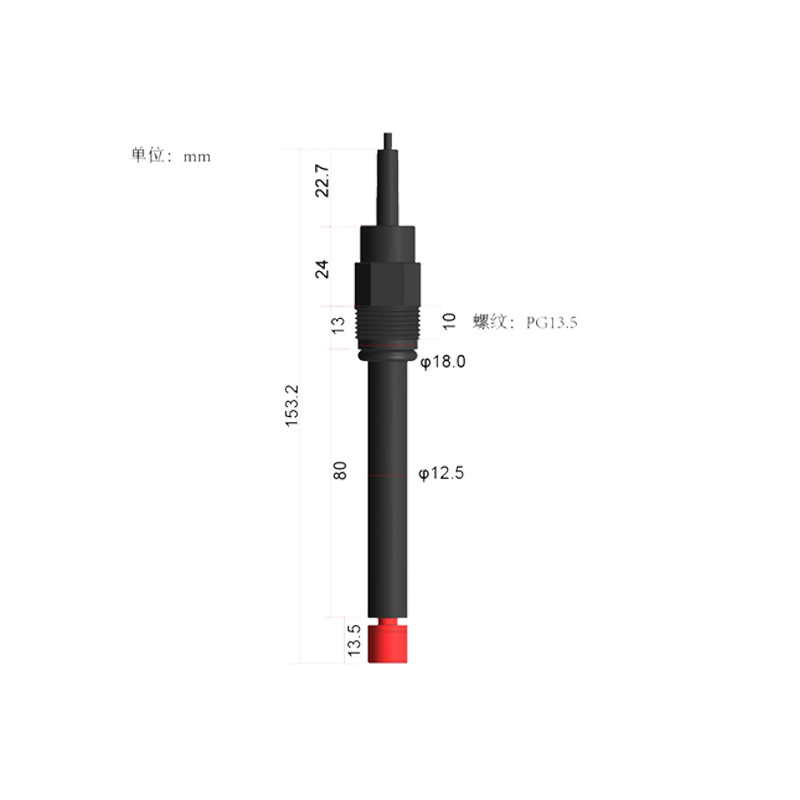

AM-ISE-P (with PG13.5 thread)

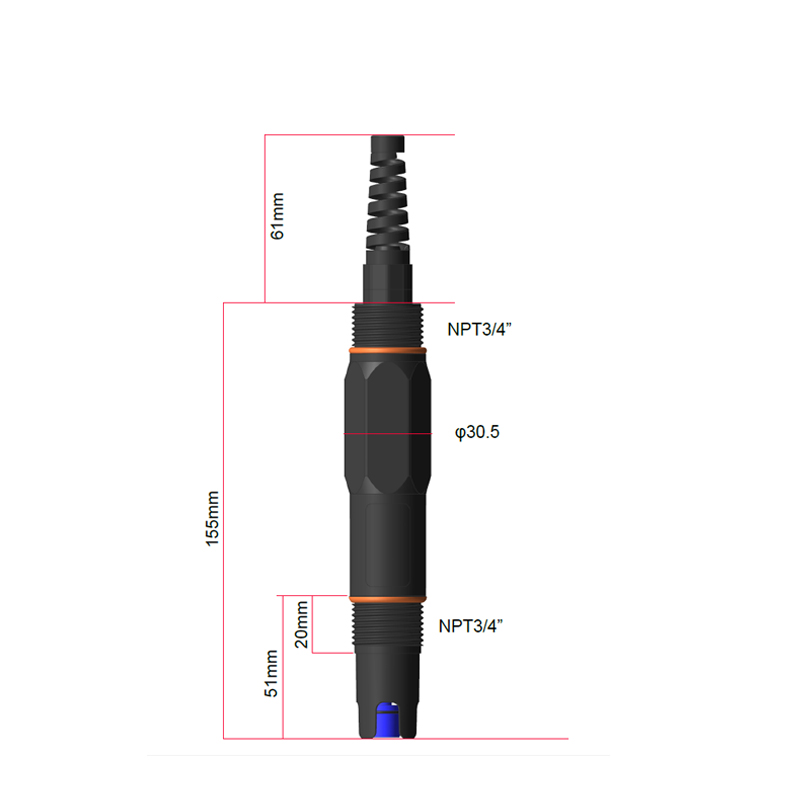

AM-ISE-N (with NPT3/4 thread)
