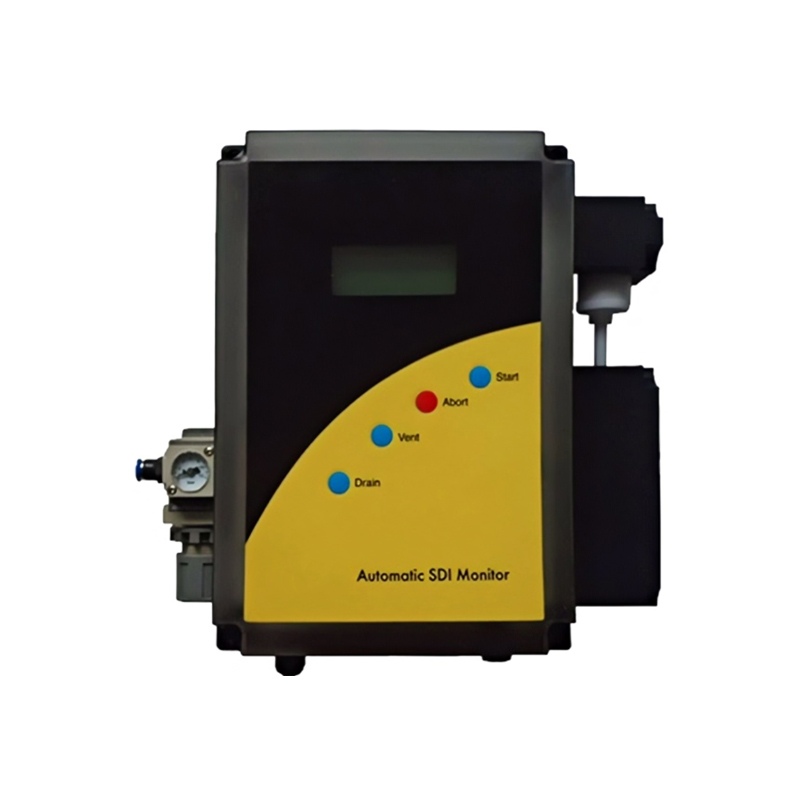

AM-SDI Online SDI Analyzer
1) Silt Density Index (SDI):0.2～6.67(SDI 15min)
2) High accuracy:±0.2(SDI 15min)
3) Method illustrated in ASTM D 4189-07
4) Communication:RS485 Modbus
5) Full automation and data management
Product Details
Aumeascon’s Online SDI (Silt Density Index) analyzer is an automatic device for real-time monitoring of water contamination, mainly applied in RO systems to evaluate the fouling potential of feed water by measuring the clogging rate of a 0.45μm filter membrane at a constant pressure of 0.207 MPa, in compliance with ASTM D4189-95. It replaces manual testing with continuous, unattended operation, improving accuracy and efficiency while reducing human error.
How It Works
AM-SDI Smart SDI Analyzer is able to provide automatic and continuous monitoring to RO feedwater. The operator can swiftly and precisely perceive the pretreatment result for RO system. Accordingly SDI measurement is not troublesome, and bias can reduced to a limit extent.
Smart SDI Smart SDI Analyzer use the method illustrated in ASTM D 4189-07, collection time is 5, 10, and 15 min, to calculate SDI. The method also precisely measure that of well water, filtrated water （<1.0NTU）or clarified water.
Calculate the silt density index as follows:
SDI n = （1-T0 /Tn） × 100/n
Where:
SDI – Silt Density Index
n- Total elapsed flow (filtrate through membrane) time, normally 5, 10, and 15min.
T0 – Initial time required to collect a certain volume of water (at n=0).
Tn – Time require to collect a certain volume of water after testing time
Core Definition & Purpose
- Assess RO feed water quality and pretreatment efficiency.
- Prevent membrane fouling, extend RO lifespan, and reduce maintenance costs.
- Enable real-time process control and data-driven decision-making.
Technical Specification
Product | AM-SDI Online Silt Density Index (SDI) analyzer |
Measuring range | 0.2~6.67(SDI 15min) |
Accuracy | ±0.2(SDI 15min) |
Pressure to filter | 0.207Mpa |
Display panel | LED backlight , 4 tactile keys |
Sample Volume | 150ml |
Microporous membrane filter | Φ25mm |
Filter membrane | Φ25mm, pore size 0.45µm±0.02µm |
Power | AC220V,30W (MAX) |
Communication | RS485 Modbus |
Protection grade | IP66 |
Connection | Input water 1/4 ″out screw, outlet 10mm hose |
Sample condition | 35~100PSI, 5~45°C, minimum flow 1000ml/min |
Environment temp | 5~45°C |
Ambient humidity | 10~95% RH(no condensed water) |
Dimension | 255×300 ×125mm |
Maily Applications
- RO Systems: Power plants, desalination, wastewater reuse, and industrial water treatment.
- Pretreatment Monitoring: Evaluate coagulation, sedimentation, and filtration efficiency.
- High-Purity Water: Semiconductor, pharmaceutical, and electronics industries.
- Industrial Processes: Petrochemical, steel, and paper industries to protect process equipment.
