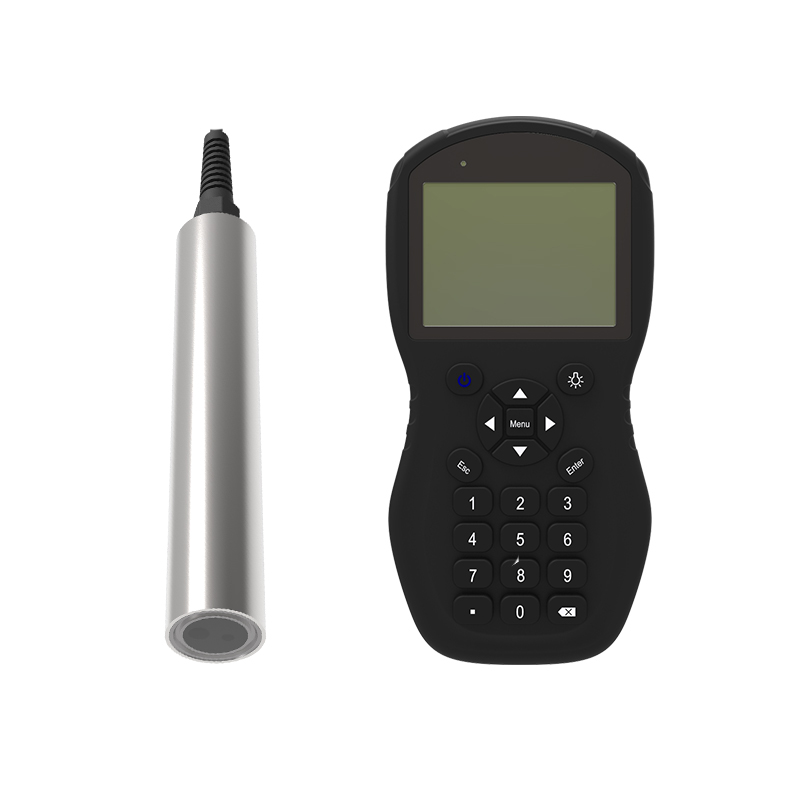

AM-P-BAG Portable Blue-green Algae Meter
1) Blue-green Algae range:200 ~ 300,000cells/mL
2) Blue-green Algae sensor’s protection:IP68
3) Power:4*3.7V Rechargeable lithium battery.
4) With 8G data storage
5) With USB interface to download data.
Product Details
The AM-P-BAG portable Blue-green Algae meter uses the characteristic that blue-green algae has absorption peaks and emission peaks in the spectrum. It emits monochromatic light of a specific wavelength and irradiates water. The blue-green algae in water absorbs the energy of the monochromatic light and releases a monochromatic light of another wavelength Color light, the intensity of light emitted by blue-green algae is proportional to the content of blue-green algae in water.
Technical Features
1) Portable host IP66 protection level,IP68 for blue-green algae sensor.
2) Advanced design with rubber washers for handset, easy to grasp in wet conditions.
3) Factory calibration, no calibration required in one year, can be calibrated on site.
4) Digital sensor, easy to use and fast in the field.
5) Plug and play with portable host.
6) With USB interface, it can charge the built-in battery and export data .
Technical Parameters
Model | AM-P-BAG Portable Blue-green Algae Meter |
Blue-green Algae range | 200 ~ 300,000cells/mL |
Accuracy | The signal level of 1 ppb Rhodamine B dye corresponds to ±10% of the value. |
Resolution | 20cells/ml |
Calibration | standard calibration, water sample calibration |
Power | 4*3.7V Rechargeable lithium battery |
Display | 3.5-inch color display screen with adjustable backlight |
Sensor material | SUS316L |
Handset casing | ABS+PC |
Operating temperature | 45 ° C |
Protection | Handset IP66; Blue-green Algae sensor IP68 |
Cable length | Standard 3 meter cable (it can be extended) |
Data storage | 8G data storage |
Mainly Applications
It’s widely used for online monitoring of chlorophyll A in water plant imports, drinking water sources, aquaculture, etc ; online monitoring of chlorophyll A in different water bodies such as surface water, landscape water, and seawater.
