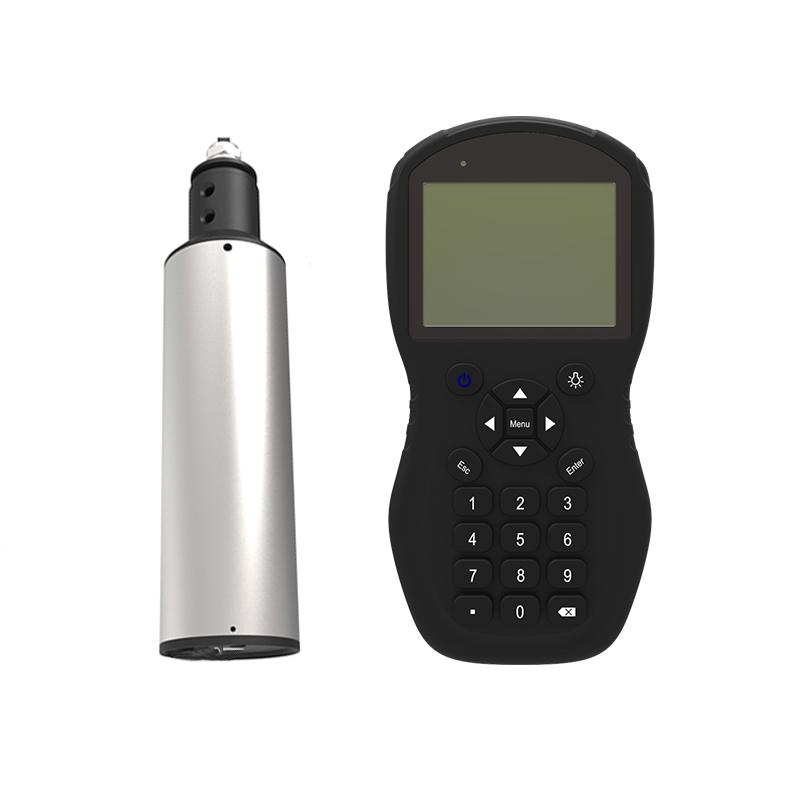

AM-P-MLSS Portable Suspended Solid Meter
1) Range:0.1-20000 mg/L,0.1-45000 mg/L ,0.1-120000 mg/L
2) Suspended solid, Sludge Concentration,TSS,MLSS
3) Blue-green Algae sensor’s protection:IP68
4) Rechargeable lithium battery:4*3.7V R.
5) With 8G data storage
6) With USB interface to download data.
Product Details
The AM-P-MLSS portable suspended solid(sludge concentration) analyzer consists of a host and a suspension sensor. The sensor is based on a combined infrared absorption scatter ray method, and the ISO 7027 method can be used to continuously and accurately determine the suspended matter (sludge concentration). The suspended matter (sludge concentration) value was determined according to ISO 7027 infrared double scattering light technology without chromatic influence.
Technical Features
- Range: 1-20000 mg/L,0.1-45000 mg/L ,0.1-120000 mg/L
- Suspended solid, Sludge Concentration,TSS,MLSS
- Protection: IP66 for handset, IP68 for suspended solid sensor.
- With 8G data storage.
- Power:4*3.7V Rechargeable lithium battery.
- Advanced design with rubber washers for handset operation.
- Easy to grasp in wet conditions.
- Factory calibrationand it can be calibrated on site.
- With DigitalTSS sensor and plug and play with handset.
- With USB interfaceto download data.
Technical Parameters
Model | AM-P-MLSS Portable Suspended Solid Meter |
Measurement Range | 0.1-20000 mg/L,0.1-45000 mg/L ,0.1-120000 mg/L (Customizable) |
Parameters | Suspended solid, Sludge Concentration,TSS,MLSS |
Measurement Accuracy | Less than ±5% of the measured value (depends on the homogeneity of the sludge) |
Resolution | 0.1mg/L |
Display | 3.5 Inch color display, adjustable backlight |
Calibration | Standard Solution Calibration, Water Sample Calibration |
Material | TSS Sensor: SUS316L Mainframe Casing: ABS+PC |
Storage Temperature | -15 to 50℃ |
Working Temperature | 0 to 45℃ |
Size/Weight | Sensor: Diameter 60mm*Length 256mm Dimension of Mainframe: 203*100*43mm |
Protection | Sensor : IP68 Handset: IP67 |
Length of Cable | Standard cable length is 3 meters, which is extendable. |
Display | 3.5 Inch color display, adjustable backlight |
Data Storage | 8G Data Memory Space |
Mainly Applications
Widely used in on-site portable suspended solid monitoring of water suspended solids in sewage treatment, surface water,river,lakes, universities, research institutes and other aqueous systems.
