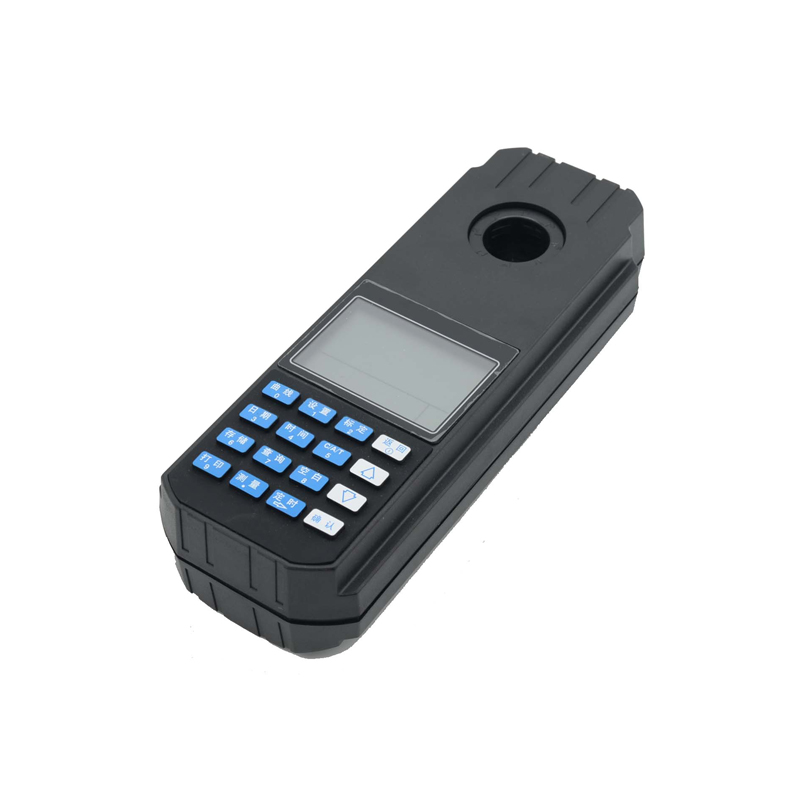

AM-P-HD210 Portable Water Hardness Meter
1) Water hardness range: 0.10~500.00mg/L.
2) It measures total hardness: Ca2+ and Mg2+.
3) With built-in rechargeable lithium battery.
4) With USB port to download data.
5)Lightweight, easy to carry, and suitable for on-site testing.
Product Details
Aumeascon’s portable water hardness meter is a compact, handheld analytical instrument designed to quickly and accurately measure the hardness of water samples in on-site scenarios. Unlike benchtop lab equipment, it prioritizes portability, ease of use, and real-time data output and It uses a monochromatic cold light source, and the microcomputer automatically processes the data to directly display the total hardness concentration value of the water sample. making it an essential tool for multiple industries and applications. Such as the determination of drinking water, surface water, surface water, sewage and industrial wastewater
Technical Specification
- The instrument is equipped with cold light source and narrow band interference optical system, which has good optical stability.
- The device employs a high-performance ultra-low-power single-chip microcontroller, paired with a high-capacity rechargeable lithium battery.
- The time of operation can be more than 6 months.
- The LCD large-screen Chinese menu display provides intuitive and user-friendly operation.
- The instrument is compact and portable, facilitating on-site testing.
- In addition to the factory-direct-use curves, users can add and calibrate their own curves.
- It can save 20 factory curves and 500 measurement values.
- Supports one-click factory reset to prevent data loss or accidental deletion.
- It features a USB port for transferring data to a computer and saving it as a file.
- Data power failure protection function;
- The mainframe housing is made of molded ABS material, offering excellent corrosion, waterproof, and dustproof performance.
Technical Parameters
Model | AM-P-HD210 Portable Water Hardness Meter |
Measuring range | 0.10~500.00mg/L |
Accuracy | ≤±5 %F.S |
Repeatability | ≤±2% |
Minimum resolution | 0.01mg/L |
Optical stability | The absorbance drift within 20 minutes is less than 0.002A; The light source lifespan is 100,000 hours. |
Luminous lifetime | 100,000 hours |
Memory | It can store 250 factory curves, 749 user curves, and 9,999 sets of measurement data. |
Display | English / LCD |
Power | rechargeable lithium battery |
Power consumption | 10W |
Dimension | Host: 88mm x 230mm x 52mm; Outer box: 457mm x 370mm x 188mm |
Charge/Data Interface | Mini USB |
Service condition | Ambient temperature: 5–40°C |
Relative humidity: ≤85% ( | |
No significant vibration or electromagnetic interference; avoid direct sunlight exposure |
Mainly Applications
- Household & Daily Use: Testing tap water, well water, or swimming pool water hardness to guide water softener use and ensure the safety of domestic water.
- Industrial Production: Monitoring cooling water, boiler feedwater, and process water hardness in industries such as manufacturing, power generation, and chemical engineering to prevent scaling and equipment damage.
- Agriculture & Aquaculture: Measuring irrigation water and aquaculture pond water hardness, as improper hardness levels can affect crop growth and aquatic organism survival.
- Environmental Monitoring: On-site testing of surface water (rivers, lakes) and groundwater hardness for environmental impact assessments and pollution monitoring.
- Water Treatment Industry: Verifying the effect of water softening systems in water plants and commercial water treatment facilities to ensure the treated water meets quality standards.
- Food & Beverage Industry: Testing raw water hardness in beverage production, dairy processing, and brewing to guarantee product quality and process stability.
Configuration List
Item | Qty | Item | Qty |
Host computer | 1 | Test tube rack | 1 |
Portable case | 1 | Copy of data acquisition installation software | 1 |
Power adapter | 1 | Copy of user manual | 1 |
Set of reagents | 1 | Copy of product qualification certificate | 1 |
Cuvettes | 3 | Copy of warranty card | 1 |
