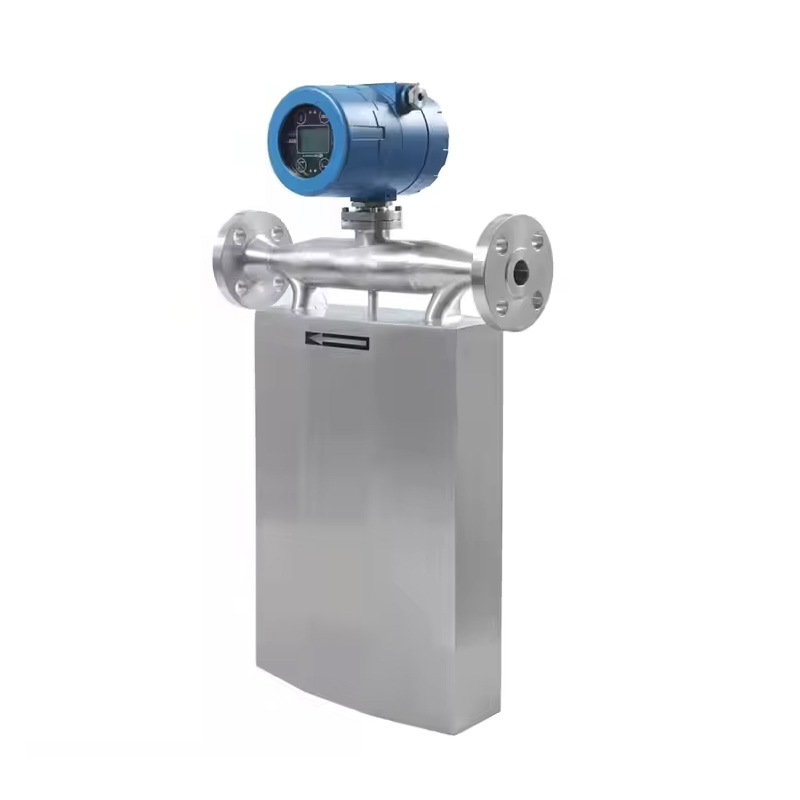

AM-CMFM Coriolis Mass Flow Meter
1) Mass flow, volume flow, density and temperature at same time.
2) Pipe size:DN1~DN150
3) High accuracy:±0.2% mass flow.
4) Output:4-20mA, RS485 Modbus,Hart,Pulse
5) Mateiral: SS316L, HC alloy, titanium alloy
6) Explosion-proof
Product Details
AM-CMFM Coriolis Mass Flow Meter patented and developed by Aumeascon are the leading meters for precision flow measurement. And with good reason, the meters offer the most accurate measurement available for virtually any process fluid, while exhibiting exceptionally low pressure drop. The Coriolis Mass Flow Meters offer direct mass flow, volume flow, density, and temperature measurement of liquids and slurries — without the need for additional equipment, manual calculations, or estimations.
The Coriolis Mass Flow Meterre designed for unsurpassed performance in even the harshest operating environments. They have no moving parts, and any special mounting or flow conditioning requirements. Every meter is available with stainless steel wetted parts and a wide variety of process connections to meet your every need.
Benefits of using Aumeascon´s Coriolis Mass flowmeter:
1) Measure mass flow, volume flow, density and temperature at same time.
2) Save cost by making several measurements with one device.
3) Gain real-time and in-process measurement.
4) Realize unmatched flow and density measurement performance in most challenging liquid, gas and slurry applications.
5) Achieve superb measurement confidence with the highest immunity to fluid, process and environmental effects.
6) Improve scalability with a broad array of application coverage including hygienic, cryogenic and high-pressure.
7) No mechanical wear and minimize installation issues and Save critical installation space.
Technical Specification
Specs | Line Sizes (mm) | Flow Range (t/h) | Calibration Range (t/h) | Max. Tube Pressure (MPa) | Zero Stability (t/hr) | Velocity Parameter (h m/t s) |
DN1 | 1 | 0~0.04 | 0.004~0.04 | 30.0 | 0.000008 | 353.7 |
DN3 | 3 | 0~0.35 | 0.035~0.35 | 30.0 | 0.000067 | 39.3 |
DN6 | 6 | 0~0.7 | 0.07~0.7 | 30.0 | 0.00016 | 19.65 |
DN10 | 10 | 0~1.2 | 0.12~1.2 | 30.0 | 0.0002 | 4.912 |
DN15 | 15 | 0~6.4 | 0.64~6.4 | 4.0 | 0.0011 | 2.183 |
DN25 | 25 | 0~16 | 1.6~16 | 4.0 | 0.002 | 0.902 |
DN40 | 40 | 0~40 | 4~40 | 4.0 | 0.003 | 0.334 |
DN50 | 50 | 0~65 | 6.5~65 | 4.0 | 0.006 | 0.197 |
DN80 | 80 | 0~160 | 16~160 | 2.5 | 0.01 | 0.0873 |
DN100 | 100 | 0~250 | 25~250 | 2.5 | 0.015 | 0.0544 |
DN150 | 150 | 0~550 | 55~550 | 2.5 | 0.03 | 0.0239 |
( Table 1 )
Titles | Technical Specifications |
Mass flow accuracy | ±[0.2% +(zero stability /flow rate×100%)] |
Mass flow repeatability | ±(1/2) ×[0.2% +(zero stability /flow rate×100%)] |
Density range | 0.2 g/cm3~3.5g/cm3 |
Density accuracy | ±0.002g/cm3 |
Temperature range | -60℃~+200℃ |
Temperature accuracy | ±1℃ |
Output of current loop | 4mA~20mA |
Communication | RS485 Modbus,Hart |
Output of frequency/pulse | 0Hz~10kHz |
Contactor capacity of a Batch Control relay | 24V/0.1A |
Contactor form | normal open |
( Table 2 )
Titles | Specifications |
Temperature range of fluid | -40℃~+200℃ |
Environmental temperature range | 0℃~+40℃ |
Environmental humidity | ≤90% RH, non condensation |
Atmospheric pressure range | 86kPa~106kPa |
Power supply of transmitters | Essential safety Voltage: AC(220±10%)V,(50±5%)Hz Composite Voltage: DC (24±10%) V |
Power consumed | ＜15W |
( Table 3 )
Form of Explosion-proof | Identification Code |
Essential safety | Exib[ib]IIBT4 |
Composite | Exdib[ib]IIBT4 |
( Table 4 )
Maily Applications
- Oil and Gas: Loading and unloading of hydrocarbons, bunkering fuel, and custody transfer applications.
- Chemical and Petrochemical: Measuring acids, alkalis, and other chemicals, catalyst research, and process control.
- Food and Beverage: Hygienic applications for products like milk, chocolate, and syrup, as well as accurate dosing and concentration measurements (e.g., alcohol in spirits).
- Water and Wastewater: Measuring flow in water treatment plants and for sludge concentration.
- Power Generation: Monitoring flow in power plants.
- Pulp and Paper: Monitoring the flow of various fluids in paper production.
- Mining and Mineral Processing: Measuring slurry and other process fluids.
- Life Sciences: Precise measurements in applications like pharmaceutical manufacturing, for example, in liquid precursor delivery to vaporizers and for accurate filling.
